PAOFONG Heavy cutting Machine

2016-07-04

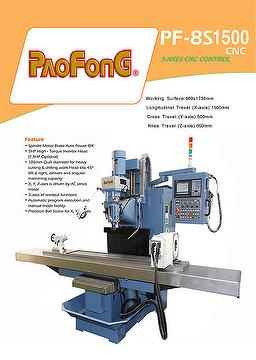

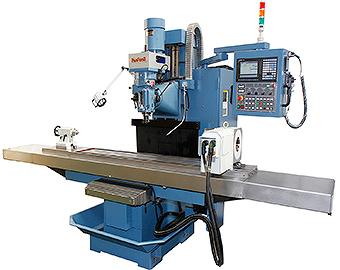

PF-8S1500CNC

heavy-duty

5HP High - Torque Inverter Head (7.5HP Optional)

  • 105mm Quill diameter for heavy cutting & drilling work Head tilits 45° left & right , delivers and angular machining capacity
  • Spindle Motor Stop brake Auto Power off
  • X, Y, Z-axes is driven by AC servo motor
  • 3-axes of readout functions
  • Automatic program execution and manual mode facility
  • Percision Ball Screw for X, Y, Z-axes



heavy-duty

PF-8S1500CNC

Longitudinal travel-X        1500 mm

Cross travel-Y              500 mm

Vertical travel-Z             550 mm

Table size                1730×400 mm
